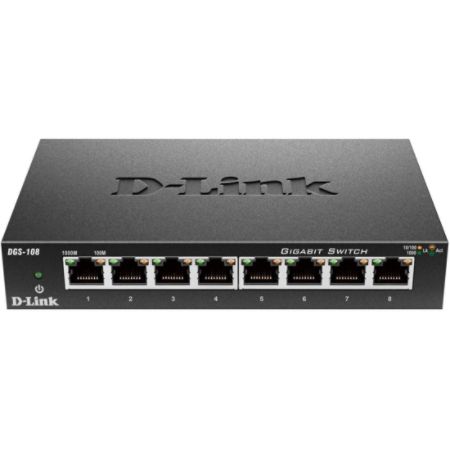

D-Link® DGS-108 8-Port 10/16 Gbps Gigabit Desktop Ethernet Switch Item # 941956

5 1 4.6 (7) |

Description |

Email This Page
Note: You can share Individual Items, entire Shopping Carts, and Shopping Lists.
Share this Item

D-Link® DGS-108 8-Port 10/16 Gbps Gigabit Desktop Ethernet Switch

^$ 31 ^.99 / each (*)

Was: $~~48.39~~ / each (You Save: $16.40)

After Instant Savings
Prices effective through 04/16/2016.

Add a Protection Plan (optional)
No Protection	2 Year Protection +$7.99
Includes Coverage For Accidental Drops & Spills

Available for future delivery

Free in store pickup

Sold in stores

Check your store availablity

Qty

Description

Boost your business' wired network with gigabit speed

Power, performance and reliability — cost-effective, space-saving design.
High-speed networking solution. Upgrades systems to a faster 10/16 Gbps switching-fabric network.
Saves space. The connector and ports are located in the rear to avoid messy cables on the desk.
Cable Diagnostic LEDs. Displays instant link status and activity information for an easy status check.
D-Link Green technology. Powers down unused ports, saving energy without affecting performance.
Tough, metal exterior provides a durable alternative to plastic enclosures.
Plug-and-play set up. Requires no configuration, and connects multiple computers around the office.
Complies with IEEE 802.3, 802.3u and 802.3x standards. Supports IEEE 802.1p QoS (4 Queues, Strict Mode).

Product Details

Item #	941956
OfficeMax #	23615009
Manufacturer #	DGS-108

Ethernet Technology	Gigabit Ethernet
plug and play	yes
maximum data transfer rate	2 Gbps
cable included	yes
Total Number of Network Ports	8
height	1.2 in
Additional Information	Address Aging Timer: Automatic Update; Jumbo Frames: 9.6KB
Number of Network (RJ-45) Ports	8
Certifications & Standards	IEEE:IEEE 802.3; IEEE 802.3u; IEEE 802.3ab; IEEE 802.3x; IEEE 802.1p; Emissions:FCC Class B; CE Class B; CSA International
width	7.8 in
depth	4.5 in

Product Name	DGS-108 Unmanaged 8-Port 10/100/1000Mbps Switch
Twisted Pair Cable Standard	Category 5
manufacturer	D-Link Systems, Inc
Additional Warranty Information	Free Technical Support
Management	QoS: 802.1p (4 Queues)
weight	1.13 lb
brand name	D-Link
Port/Expansion Slot Details	8 x Gigabit Ethernet Network
dimensions	1.4"H x 5.8"W x 3.4"D
Media Type Supported	Twisted Pair
Layer Supported	2
automatic speed sensing	yes
ports	EthernetEthernet 10/100Ethernet 10/100/1000
form factor	Desktop
warranty length	limited lifetime
model name	DGS-108
internal/external	external
Network Technology	10/100/1000Base-T

Show More ▾

Customer Reviews

Rated 4.6 out of 5�by 7 reviewers.

Rated 5 out of 5�by Erick Expandability This was the perfect device to connect my other devices to my LAN, and if needed it's expandable. I have 3 laptops, 4 desktops, 4 printers, 13 TB of backup on my network. All talking and sharing with each other. PERFECT! March 22, 2016

Rated 5 out of 5�by jw20000 Works Miracles I have a DSL port in an office building behind my house from CenturyLink dynamic DHCP ISP service. When I connected a Zyxel C1100Z modem router to the DSL, the office had wifi and ethernet service with maximum performance. I have an Ethernet cable to a distribution panel in our house. When I connected a D-Link wifi router using the WAN ports and used Transparent Bridging mode, the house had ethernet and wifi service to the internet but it disabled the router in the office. I purchased this D-Link 8 port switch to connect the house ethernet to our computers from a LAN port in the Office modem router. Both buildings now had ethernet internet service with maximum performance. 2 computers in the Office (Mac and Windows 7) and 3 computers in the house (2 Mac and windows XP). Next I attached the D-Link DIR-817LW wifi router to the D-Link Switch through a LAN port on both. I opened the configuration page on the 817 and set the MAC address to match the Zyxel modem router in the office. Suddenly we had wifi and ethernet internet service to both buildings for all computers. Both wifi units are far enough apart to avoid noise or wireless conflicts. Most experts said it couldn't be done. However it works splendidly. March 13, 2016

Rated 5 out of 5�by BobL Great product for small business have used product before. Purchased new one when old one quit working. Product was available in store and quickly available which allowed us to keep network down time to a minimum. October 12, 2015

Rated 4 out of 5�by Cindy D Link is a great buy! Internet was faster. I am glad we choose this product. July 8, 2015

2 next>>

From the Manufacturer|

Thank You Is the information in this section helpful? Yes / No

Overview

Overview

The DGS-108 8 Port Gigabit Unmanaged Metal Desktop Switch provides a quick, easy and economical way to add high speed networking to home offices and small/medium businesses. With data transfer speeds of up to 2000 Mbps the DGS-108 is ideal for fast file transfers, and smooth media streaming. It provides eight Gigabit ports for easy expansion of your network and a quick way to upgrade your network to Gigabit connectivity.
Effortless Gigabit Networking

With data transfer speeds of up to 2000 Mbps on Gigabit Ethernet, the D-Link DGS-108 Switch is ideal for transferring files quickly. Easy access front Ethernet ports with two color LED indicators per port allows you to quickly distinguish link status and speed. The switch supports IEEE 802.1p QoS, which organizes and prioritizes time-sensitive and important data for efficient delivery, allowing for smooth media streaming and VoIP calling. Additionally the switch incorporates a Kensington Security Slot on the rear panel allowing users to securely fasten the unit to a table or desk.

Gigabit Connection for Home and SOHO

The DGS-108 Switch offers an economical way for SOHO and small/medium businesses to benefit from the increased bandwidth of Gigabit Ethernet. It provides eight Gigabit ports for easy expansion of your network and a quick way to upgrade your network to Gigabit connectivity.
Think Green

The DGS-108 is a plug-and-play networking switch that offers D-Link’s Green Technology to save energy and reduce heat, which in turn extends product life without sacrificing performance or functionality. The switch supports IEEE 802.3az Energy-Efficient Ethernet (EEE) which detects when a connected computer is shut down or when there is no Ethernet traffic, at which time the switch will automatically power down the idle port, saving a substantial amount of power. In addition, the switch can also save energy by detecting the cable length and using only as much power as necessary. Working together these features drastically reduce power consumption and heat dissipation, resulting in extended life and substantial cost savings.

IEEE 802.1p QoS

QoS prioritizes network traffic so that time-sensitive data is delivered efficiently, even during bursts of high data traffic. This helps ensure an optimal experience for streaming media and VoIP calls.

Environmentally Friendly

The DGS-108 Switch was designed with the environment in mind. It is compliant with Energy Star Level V, CEC, and MEPS regulations which require the use of energy efficient power adapters. Built to comply with RoHS standards to minimize use of hazardous materials and is packaged with an EnergyStar Level V qualified power adapter all in a recyclable packaging making this product truly environmental friendly.
Cable Diagnostics Function

The D-Link Cable Diagnostics Function enables users to be instantly aware of cable conditions through the LED display on the front-panel. Users can determine whether the pin connections of their cable connectors are correct, facilitating prompt network troubleshooting if required.

Features

• Built-in D-Link Green Technology
• Rugged metal housing
• Inexpensive Gigabit solution for small and medium business
• Eight 10/100/1000 Mbps Gigabit ports
• 16 Gbps switching fabric
• Auto MDI/MDIX crossover for all ports
• Secure store-and-forward switching scheme
• Full/half-duplex for Ethernet/Fast Ethernet speeds
• IEEE 802.3x Flow Control
• Supports Jumbo Frames
• Supports IEEE 802.1p QoS
• Supports Cable Diagnostics Function
• RoHS compliant
• Plug-and-play installation

Images

Specification

Switching Fabric

16Gbps

Standards

IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted-pair copper)
ANSI/IEEE 802.3 NWay auto-negotiation
IEEE 802.3x Flow Control
IEEE 802.1pQoS
IEEE 802.3az Energy-Efficient Ethernet (EEE) Protocol

CSMA/CD

Data Transfer Rates

Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
Gigabit Ethernet: 2000 Mbps (full duplex)

Network Cables

10BASE-T: UTP CAT 3, 4, 5/5e (100 m max.)
EIA/TIA-586 100-ohm STP (100 m max.)
100BASE-TX, 1000BASE-T: UTP CAT 5/5e (100 m max.)
EIA/TIA-568 100-ohm STP (100 m max.)

Media Interface Exchange

Auto MDI/MDIX adjustment for all ports

LED Indicators

Per port: Link/Activity/Speed
Per device: Power

Transmission Method

Store-and-forward

MAC Address Table

MAC Address Learning

Automatic update

Packet Filtering/Forwarding Rates

Ethernet: 14,880 pps per port
Fast Ethernet: 148,800 pps per port
Gigabit Ethernet: 1,488,000 pps per port

RAM Buffer

128KB per device

Jumbo Frames

9,216 Bytes

QoS

4 Queues, strict mode

General Specifications

DC Input

External 5V/1 A Level “V” Power Adapter

Power Consumption

Power On (Standby): DC input: 0.45 watts
AC input: 1.14 watts
Maximum: DC input: 2.75 watts
AC input: 4.15 watts

Heat Dissipation

Power On (Standby) AC input: 3.8874 BTU/h
Maximum DC input: 14.083 BTU/h

MTBF

858,090 hours

Operating Temperature

32 to 104 ˚F (0 to 40 ˚C)

Storage Temperature

14 to 158 ˚F (-10 to 70 ˚C)

Operating Humidity

10% to 90% RH non-condensing

Storage Humidity

5% to 90% RH non-condensing

Dimensions

6.3 x 4 x 1.1 inches (162 x 102 x 28 mm)

Weight

0.90 lbs (412 grams)

Certifications

FCC Class B
ICES-003 Class B
CE Class B
C-Tick Class B
VCCI Class B
cUL
CB

Warranty

Limited Lifetime

Ordering Information

DGS-108 8-Port Gigabit Unmanaged Metal Desktop Switch

Datasheet

DGS-108 Datasheet
DGS-108 Datasheet - opens PDF

Datasheet for DGS-105 and DGS-108 Unmanaged Desktop Switches

View DGS-108 Datasheet - opens PDF | Download DGS-108 Datasheet

PDF, 1.26MB, 4 pages
